Pneumatic Cable Stripping Machine WPM-330

Long Stripping Length Pneumatic Wire Stripping Machine for Various Cables - Model WPM-330

The WPM-330 Pneumatic Wire Stripping Machine is a high-performance and versatile solution designed for efficient and precise stripping of a wide range of wires and cables. Featuring a bevel design for ergonomic operation, this machine incorporates a reliable dual-driving cylinder system that eliminates spring breakage, ensuring long-term durability. The integrated self-feeding oil and supply mechanism provides automatic lubrication to the cylinder, minimizing wear and extending the machine's lifespan. With a special sliding holder, the WPM-330 delivers a balanced stroke and high peeling precision. The electric control system allows for easy operation, and the adjustable structure accommodates various wire thicknesses. Notably, the WPM-330 offers an extended stripping length of up to 330MM, making it suitable for applications requiring longer exposed wire. This machine is ideal for short cables with small to medium diameters, such as AC/DC power wires, computer cables, electronic cables, and multi-core cables.

Key Features and Benefits:

• Ergonomic Bevel Design: Ensures comfortable operation according to ergonomic principles.
• Dual-Driving Cylinder: Provides reliable and consistent performance without spring breakage.
• Automatic Lubrication: The self-feeding oil system extends the machine's lifespan and reduces maintenance.
• High Peeling Precision: Special sliding holder ensures a balanced stroke and accurate stripping results.
• Electric Control: Offers easy and precise operation through electric controls.
• Adjustable Structure: Allows for quick and easy adjustments to accommodate different wire thicknesses.
• Long Stripping Length: Offers an extended stripping length of up to 330MM for greater application flexibility.
• Versatile Application: Suitable for short cables with small to medium diameters, including AC/DC power wires, computer cables, electronic cables, and multi-core cables.
• Pneumatic Power: Utilizes pneumatic force for powerful and consistent stripping action.
• Wide Wire Diameter Capacity: Can handle wires with diameters ranging from 0 to 20mm.
• Significant Stripping Force: Delivers a stripping force of 84-196KG for effective insulation removal.

Detailed Functionality:

The WPM-330 Pneumatic Wire Stripping Machine utilizes a powerful pneumatic system to precisely remove insulation from various types of wires and cables. The ergonomic bevel design ensures operator comfort, while the dual-driving cylinder guarantees reliable and consistent performance. The integrated automatic lubrication system minimizes maintenance needs. The adjustable structure allows users to easily adapt the machine to different wire gauges and insulation thicknesses. The electric control system provides a user-friendly interface for efficient operation. The extended stripping length of 330MM makes it suitable for applications where a longer portion of the wire needs to be exposed.

Specifications:

• Model: WPM-330
• Stripping Length: 330MM (Maximum stripping length)
• Wire Diameter: 0-20mm
• Air Pressure: 0.5-0.7mpa
• Voltage: 220V/50HZ or 110V//60HZ (Please specify preference)
• Force: 84-196KG
• Weight: 65KG
• Size: L1100 * W550 * H450mm

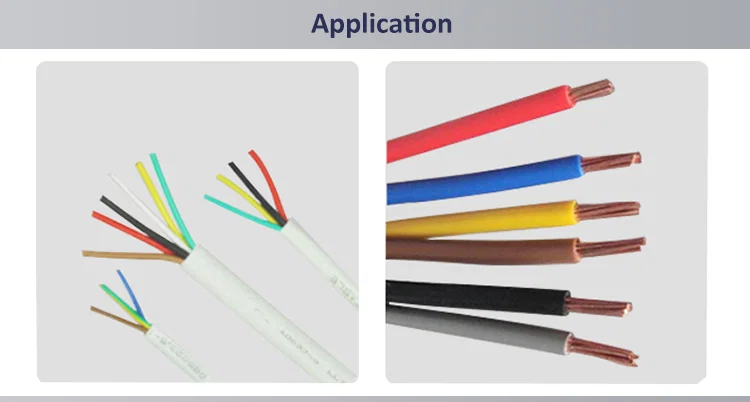

Applications:

This machine is commonly used for stripping:

• AC/DC power wires requiring longer exposed conductors
• Computer cables
• Electronic cables
• Multi-core cables
• Wires and cables with diameters up to 20mm where a longer stripping length is needed.

Why Choose the WPM-330 Pneumatic Wire Stripping Machine?

The WPM-330 offers a robust and reliable solution for stripping a wide range of wires and cables, with the significant advantage of a longer stripping length. Its ergonomic design, durable construction, automatic lubrication, and high stripping force make it an excellent choice for businesses seeking an efficient and precise cable stripping machine with extended reach.

Contact Us Today for a Quote!

Upgrade your cable processing capabilities with the WPM-330 Pneumatic Wire Stripping Machine. Contact us today to learn more about this powerful and versatile machine and request a personalized quote. Please specify your desired voltage (220V or 110V) when contacting us.
