Terminal machine cutter block terminal blade mold cutting block
- Model No:

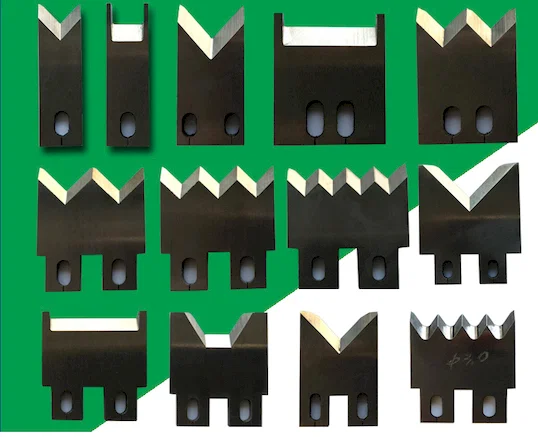

- Terminal machine cutter block, terminal blade mold cutting block, belt cutting, all kinds of the cutter, and block mold accessoriesmachines can be equipped with three kinds of blades: round knife, V knife, and flat knife. Each machine is equipped with a set of blades ( a set of 2 pieces). Users of the equipped blades can choose among the above blades according to their own wire stripping needs, One kind, if there are other blade needs, please contact customer service.
Flat knife: suitable for stripping flat wire
V knife: suitable for wires with an outer diameter below 4.0mm or thicker wires outside the wire, and can be adjusted in size.
Cutter: Cut the head of the thread straight
Round knife: Suitable for all-round wires, the knife-edge size is 2.0-14mm, 2.0-10mm interval 0.5mm blade, 10.1-14mm interval 1.0mm blade. Need a round knife, please provide the outer diameter of the wire
Butt knife: thinner processing wire
Semi-circle butt knife: ordinary fork-type V knife and round knife peeling due to asymmetric force, when processing wire with thinner skin and longer stripping length the inner core will often be scratched, while the simple ordinary butt knife processing. Sometimes it is difficult to align the knife edge, which seriously affects production efficiency. - Inquiry now
Terminal machine cutter block, terminal blade mold cutting block, belt cutting, all kinds of cutter, block mold accessories
High durable OTP mold applicator blade die terminal holder base OTP cutter seat crimping terminal spacer die

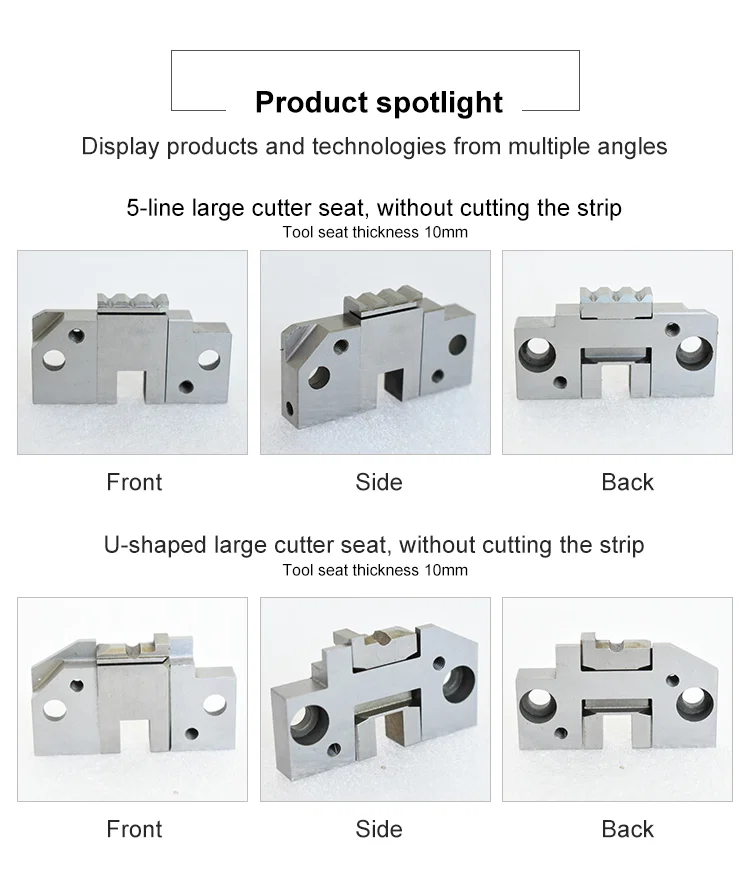

5-line large cutter seat, without cutting the strip ( Tool seat thickness 10mm)
U-shaped large cutter seat, without cutting the strip ( Tool seat thickness 10 mm)
U-shaped cutter seat, cutting the material belt ( Tool seat thickness 10 mm)
V-shaped cutter seat, without cutting the strip ( Tool seat thickness 10mm)

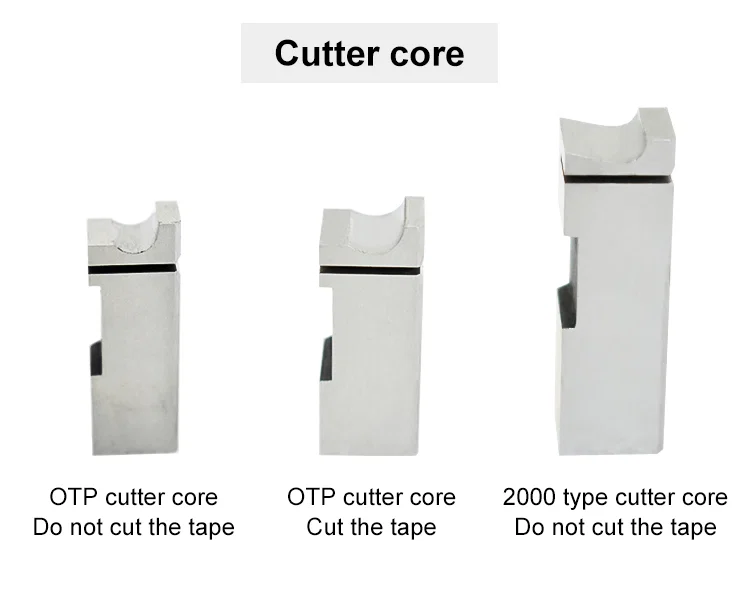

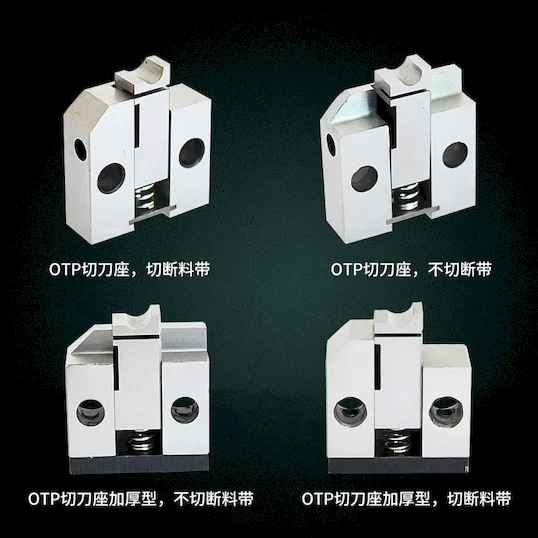

OTP cutter seat, cut the strip (The knife seat thickness is 10mm, and the knife core is 9*8)
OTP cutter seat, without cutting the tape ( The knife seat thickness is 10mm, and the knife core is 9*8)

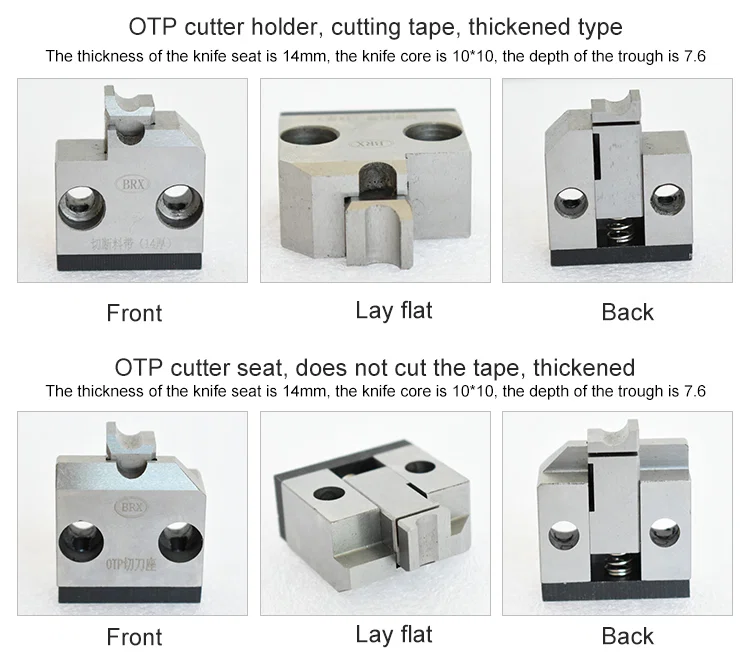

OTP Cutter holder, cutting tape, thickened type ( The thickness of the knife seat is 14mm, the knife core is 10*10, and the depth of the trough is 7.6)
OTP cutter seat does not cut the tape or thickened. ( The thickness of the knife seat is 14mm, the knife core is 10*10, and the depth of the trough is 7.6)
806 cutter seat, without cutting the tape ( Tool seat thickness 10mm)
2000 type cutter seat, cut the strip ( Tool seat thickness 15mm, 40*40mm)

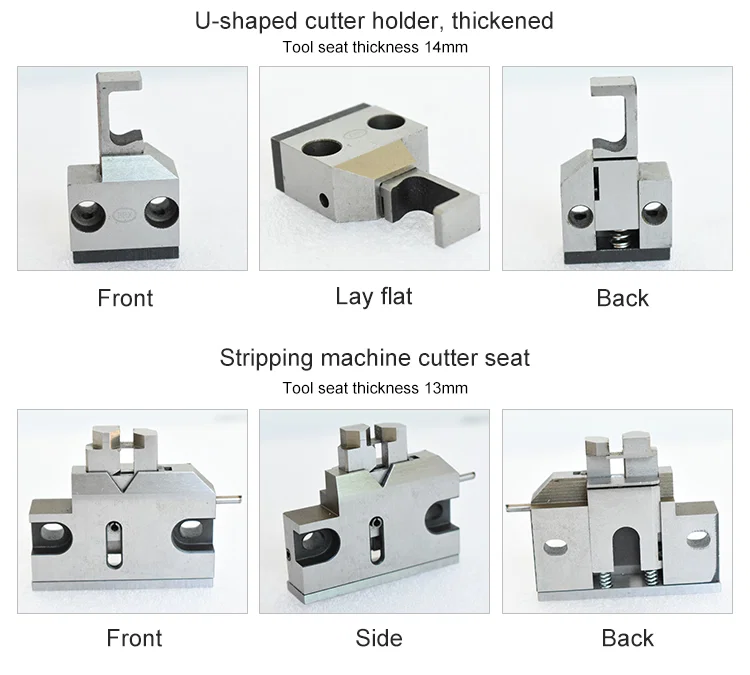

U-shaped cutter holder, thickened ( Tool seat thickness 14mm)
Stripping machine cutter seat ( Tool seat thickness 13 mm)
