Automatic wire rewind and binding machine (WPM-212A)
- Model No: WPM-212A
- Wire rewind binding machine, Wire Twist Tie Machine, Cable Coil Winding And Binding Machine, Cable Coil Binding Machine, Automatic Wire Twist Tie Machine

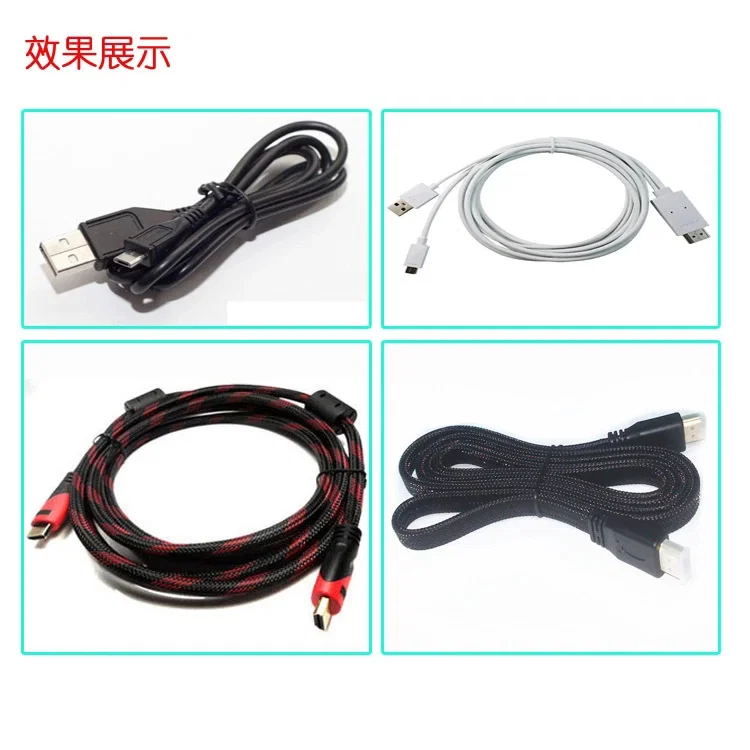

1. Semi-automatic winding bunding machine takes advanced technology and precision manufacturing, winding and tying AC cable, DC cable, data wire, cable, other electric wires, and twisted bundles. Wire heads can be on one side or two sides. Winding and tying are accomplished at one time.
2. This work efficiency is three to four times faster than working by hand. Ending the history of enormous labor and injuring fingers as well as saving the high cost of the proprietor.
Characters:
1. The machine is controlled by PLC or controller and touch screen display. Speed of winding cable, several circles can be set up at random according to users’ requirements.
2. This machine can show the actual production quantity at any time, and also set up the quantity of each carton. When the quantity range setting quantity, the machine will automatically alert and shut down.
3. When something wrong during work, the machine warns operators immediately.
- Inquiry now
Features:
1. Semi-automatic winding& bunding machine takes advanced technology and precision manufacturing, winding and tying AC cable, DC cable, data wire, cable, other electric wires, and twisted bundles. Wire heads can be on one side or two sides. Winding and tying are accomplished at one time.
2. This work efficiency is three to four times faster than working by hand. Ending the history of enormous labor and injuring fingers as well as saving the high cost of the proprietor.
Characters:
1. The machine is controlled by PLC or controller and touch screen display. Speed of winding cable, several circles can be set up at random according to users’ requirements.
2. This machine can show the actual production quantity at any time, and also set up the quantity of each carton. When the quantity range setting quantity, the machine will automatically alert and shut down.
3. When something wrong during work, the machine warns operators immediately.
Model
Winding range*
50-200mm
50-200mm
50-250mm
50-300mm
Binding range*
8-30mm
5-30mm
18-45mm
40-80mm
Tie length
65-130mm
75-140mm
120-190mm
200-300mm
Twist shape
Round, long, 8shape
Round, long, 8shape
Round, long, 8shape
Round, long, 8shape
Available wire
AC cable, DC cable, data line, video cable, other
electric wires
AC cable, DC cable, data line, video cable, other
electric wires
AC cable, DC cable, data line, video cable, other
electric wires
AC cable, DC cable, data line, video cable, other
electric wires
Length accuracy
±(0.002*L) mm
±(0.002*L) mm
±(0.002*L) mm
±(0.002*L) mm
Productivity
66-75 times/min
66-75 times/min
66-75 times/min
66-75 times/min
Noise level
<70dBA
<70dBA
<70dBA
<70dBA
Electrical connection
AC 220/110V/50/60HZ
AC 220/110V/50/60HZ
AC 220/110V/50/60HZ
AC 220/110V/50/60HZ
Operation interface
Touch screen
Touch screen
Touch screen
Touch screen
Machine dimension:
485*456*315mm
455*456*315mm
485*435*340mm
550*610*420mm
Weight:
45kg
42kg
52kg
65kg
Package:
Wooden case
Wooden case
Wooden case
Wooden case
