Large Double Tie Automatic Meter Cutting Wire Stripping Machine WPM-CPRT-02TH
Model No: WPM-CPRT-02TH
Process large wires with double tie, automatic metering, cutting and stripping using the Large Double Tie Automatic Meter Cutting Wire Stripping Machine. This machine automates metering, cutting, stripping, and double tie application for large wires, providing complete and length-controlled wire preparation and packaging. Ideal for length-specific large wire packaging and full automation with metering, cutting, stripping and double tying. Experience total automation for length-controlled large wire processing with metering, cutting, stripping and double tying!
Introducing the WPM-CPRT-02TH, a high-performance automatic machine designed for meter cutting, wire stripping at both ends, and large circle winding with versatile single or double tie options. This robust system is ideal for processing longer wires (up to 40 meters) with exceptional efficiency and precision.
Automated Solution for Long Wire Harness Production with Flexible Tying:
The WPM-CPRT-02TH offers a comprehensive solution for manufacturers requiring automated processing of extended wire lengths. It features accurate meter cutting, complete stripping at both ends, and the flexibility of applying single or double ties with various strap appearances around a large diameter coil.
Key Features and Benefits:
Extended Length Processing: Capable of cutting wires from 3 to an impressive 40 meters with a cutting line length accuracy of ±2mm per meter.
Versatile Tie Options: Supports single or double tie straps with split end, end, and diagonal side appearances for round ties.
Large Diameter Coil Winding: Winds wires into a large circle with an adjustable inner diameter ranging from 300 to 400mm.
Double-End Stripping: Fully strips insulation from both ends of the cut wire with adjustable peeling lengths (20-50mm).
Adjustable Parameters: Offers adjustable head retention length (250-300mm) and tail length (300-400mm) to suit various wire specifications.
High Production Efficiency: Achieves a production rate of 180-300 pieces per hour (depending on wire length).
Efficient Tape Usage: Compatible with coated iron core binding tape (≤ 7.5kg/roll).
Reliable Servo Control: Features high-quality Turbot servo motors for winding and line translation, ensuring precise and stable operation.
User-Friendly Interface: Equipped with a 7-inch dimension control screen and a Vigor PLC for intuitive operation and control.
Safety Protection: Includes a safety interlock that stops the machine when the door is opened.
Material Shortage Alarm: Features a three-color lamp and buzzer to alert operators of low binding tape levels.

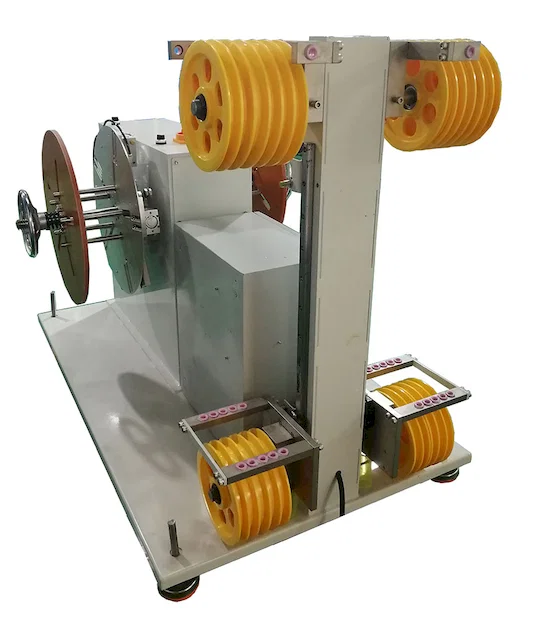

Integrated High-Speed Active Winding Machine: Comes with a supporting CY-P01-150KG high-speed active winding machine for consistent and efficient wire feeding.
Technical Parameters:
Main Machine (WPM-CPRT-02TH):
Parameter
Specification
Applicable Wire Diameter
2-5mm
Cutting Length
3-40m
Cutting Line Length Accuracy
±2mm/m
Round Tie Appearance
Single/double tie strap, split end, end, diagonal side
Inner Diameter of the Circle
300-400mm (adjustable)
Binding Diameter
≤40mm
Desquamation Mode
Complete desquamation at both ends
Head and Tail Peeling Length
20-50mm (adjustable)
Head Retention Length
250-300mm (adjustable)
Tail Length
300-400mm (random value within the interval)
Production Efficiency
180-300pcs /H (2-40m)
Applicable Binding Tape
Coated iron core ≤ 7.5kg/roll
Power Supply
NATIONAL standard 220V/50Hz
Machine Power
4.5KW/H
Machine Size (Approx.)
2500L1100W1850Hmm
Machine Weight (Approx.)
1000KG
Supporting High-Speed Active Winding Machine (CY-P01-150KG):
Parameter
Specification
Automatic Frequency Conversion
Yes
Step-less Variable Speed
Yes
Line Storage Function
Yes
Tension Function
Yes
Deceleration Function
Yes
Incoming Material Capacity
≤100KG
Incoming Wire Tray Inner Hole Diameter
60-80mm
Outer Diameter of Incoming Hollow Reel
≤630mm
Thickness of Incoming Wire Coil
≤500mm
Machine Power
2.2KW
Machine Size (Approx.)
1450L800D980Hmm
Machine Weight (Approx.)
150KG
Main Accessories:
Main Machine:
Cylinder: Yadeke cylinder and solenoid valve
Winding Main Servo Motor: 1500W Turbot
Take Line Translation Servo Motor: Turbot 750W
Online Translation Servo Motor: Dongling 750W
Winding Up and Down Motor: 57-step Thunder Race
Twisting and Strapping Belt Spitting Belt Motor: 57 stepper motor Thunder Race
Storage Tape Motor: 6W
Slide Block: Take line translation double slide block
Automatic frequency conversion, step-less variable speed
With line storage, tension, and deceleration functions
Ideal for Processing Long Wire Harnesses with Large Coils:
The WPM-CPRT-02TH is the perfect solution for manufacturers dealing with long wire harnesses that require precise cutting, stripping, and winding into a large diameter coil with the flexibility of single or double tie options. Its robust design and advanced automation capabilities ensure efficient and reliable production of even the longest wire assemblies.
Enhance Your Production Efficiency and Versatility:
Invest in the WPM-CPRT-02TH to significantly improve your production efficiency, ensure consistent quality in your long wire harnesses, and benefit from its versatile tying options. The integrated high-speed active winding machine further enhances its performance and reliability.
Contact us today for a detailed quote and to discuss how the WPM-CPRT-02TH can optimize your long wire processing operations!
