Touch Screen Jacket Cable Wire Cutting and Stripping Machine WPM-HT2S

Detailed description

Touch Screen Control Long Length Jacket Cable Wire Cutting & Stripping Machine (0.1-10mm²) - Model WPM-HT2S

The WPM-HT2S Touch Screen Control Jacket Cable Wire Cutting and Stripping Machine is a highly efficient and versatile solution for processing a wide range of electrical cables, including jacketed, round sheathed, and multi-core cables. Featuring an intuitive English/Chinese LCD touch screen interface, this machine offers precise control over cutting and stripping operations. It excels at processing long lengths of wire, with a cutting length capability of up to an impressive 100,000mm. The machine can strip insulation from both ends with lengths up to 150mm, and even perform middle stripping at up to 3 sections. Suitable for wire sizes ranging from 0.1-10mm² (AWG equivalent), the WPM-HT2S significantly improves efficiency in various wire processing applications.

Key Features and Benefits:

• Touch Screen Control: Features an easy-to-use English/Chinese LCD touch screen for intuitive operation and precise parameter setting.
• Long Cutting Length Capability: Can cut wires to lengths ranging from 1mm up to an exceptional 100,000mm.
• Long Stripping Length Capability: Offers stripping lengths up to 150mm on both the head and tail of the wire.
• Middle Stripping Function: Supports middle stripping with up to 3 cutting sections.
• Wide Wire Processing Range: Handles wire core sections from 0.1 to 10mm² (AWG equivalent).

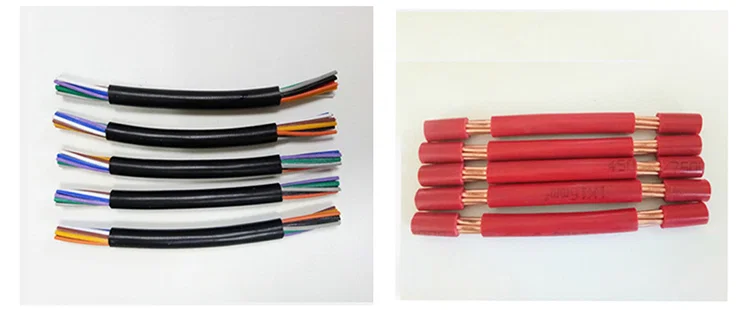

• Versatile Wire Compatibility: Optimally strips PVC, long wires, silica gel lines, glass fiber, BV line (single-core hard wire), steel wire (thin), and more.
• High Output Rate: Achieves a stripping speed of 3000-6000 pieces per hour (for L=100mm).
• High Precision: Ensures accurate cutting with tolerances of ± (0.0001xL) mm.
• Four-Wheel Drive: Provides powerful and stable wire feeding for consistent processing.
• Durable Tool Material: Equipped with hard tungsten steel blades for long-lasting performance.
• Multiple Voltage Options: Available in both AC 220V and 110V to suit different power requirements.

Detailed Functionality:

The WPM-HT2S Touch Screen Control Jacket Cable Wire Cutting and Stripping Machine automates the process of cutting wires to the programmed length and precisely removing the outer jacket and insulation. The intuitive touch screen allows operators to easily set the cutting length, head stripping length, tail stripping length, and parameters for middle stripping. The powerful four-wheel drive system ensures consistent wire feeding, even for longer lengths. The machine's high speed and precision significantly increase productivity in various wire processing tasks.

Parameters:

• Model: WPM-HT2S
• Type: 10mm² wire cutting and stripping machine
• Input Voltage: AC220V/ 50HZ/ AC110V/60HZ
• Power: 450W
• Display Method: English/Chinese LCD
• Cutting Length: 1mm-100000mm
• Stripping Length: Head 0-150mm, Tail 0-150mm
• Cutting Tolerances: ± (0.0001xL) mm
• Middle Stripping Cutting Section: 3
• Applicable Core Area: 0.1-10mm²
• OD of Wire: ∅13 mm
• Applicable Wire: PVC, Teflon, glass wire, etc
• Tool Material: Hard tungsten steel
• Stripping Speed: 3000-6000pcs/H (L=100mm)
• Drive Method: Four-wheel drive

Features:

1. Chinese and English switching displays for user convenience.
2. Key operation is convenient and quick, with the ability to stay in the middle of 34mm glue (likely referring to a specific stripping requirement).
3. Capable of making both ends semi-stripping and twisting (Note: Twisting capability not explicitly mentioned in the main description, please confirm if this is a primary function).
4. Easy and fast operation with ultra-high precision, while also being compatible with ordinary wire machine functions, significantly improving production efficiency.

Applications:

Widely used in the electronics industry for wire processing in:

• Electrical appliances
• Motors
• Lamps and lanterns
• Toys
• And other various products requiring precise cutting and stripping of jacketed cables and wires.

Why Choose the WPM-HT2S Touch Screen Control Jacket Cable Wire Cutting & Stripping Machine?

The WPM-HT2S offers a highly efficient and versatile solution for processing a wide range of wires and cables, particularly those requiring long cutting and stripping lengths. Its intuitive touch screen control, precise operation, high output, and ability to perform middle stripping make it an invaluable tool for manufacturers looking to optimize their wire preparation processes.

Contact Us Today for a Quote!

Upgrade your wire processing capabilities with the WPM-HT2S Touch Screen Control Jacket Cable Wire Cutting and Stripping Machine. Contact us today to learn more and request a personalized quote. Please specify your preferred voltage (220V or 110V) when inquiring.
