Detailed description Features:
Wire Coiling Binding Machine, wire Coiling Machine, Automatic Wire Coiling Machine, Automatic Wire Coiling Winding Tie Machine
coiling tying machine

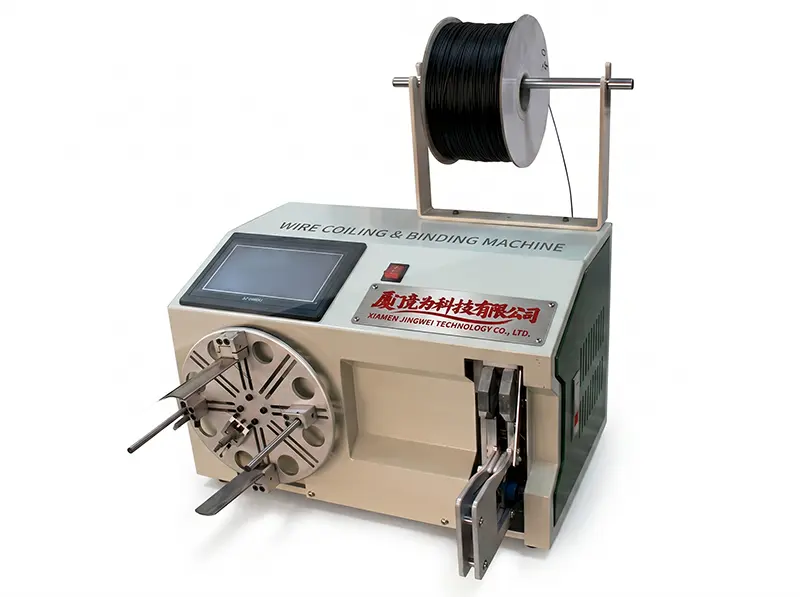

1. Semi-automatic winding& bunding machine takes advanced technology and precision manufacturing, winding and tying AC cable, DC cable, data wire, cable, other electric wires, and twisted bundles. Wire heads can be on one side or two sides. Winding and tying are completed at one time.
2. This work efficiency is three to four times faster than working by hand. Ending the history of huge labor and hurting fingers as well as saving the high cost of the owner.

Characters:
1. The machine is controlled by PLC or controller and touch screen display. Speed of winding cable, several circles can be set up at random according to users’ requirements.

2. This machine can display the actual production quantity at any time, and also set up the quantity of each carton. When the quantity range setting quantity, the machine will automatically alarm and shut down.

Model	WPM-212	WPM-212C	WPM -212L
Winding range*	50-200mm	50-250mm	50-300mm
Binding range*	8-30mm	18-45mm	40-80mm
Twist shape	Round, long, 8shape	Round, long, 8shape	Round, long, 8shape
Available wire	AC cable, DC cable, data line, video cable, other electric wires	AC cable, DC cable, data line, video cable, other electric wires	AC cable, DC cable, data line, video cable, other electric wires
Length accuracy	±(0.002*L) mm	±(0.002*L) mm	±(0.002*L) mm
Productivity	66-75 times/min	66-75 times/min	66-75 times/min
Noise level	<70dBA	<70dBA	<70dBA
Electrical connection	AC 220/110V/50/60HZ	AC 220/110V/50/60HZ	AC 220/110V/50/60HZ
Operation interface	Bilingual	Bilingual	Bilingual
Machine dimension:	500*300*400mm	500*300*400mm	500*300*400mm
Weight:	40kg	52kg	65kg
Package:	Wooden case	Wooden case	Wooden case
Delivery Information
Port of Loading:	Xiamen	Xiamen	Xiamen
Lead time	3-5 days after payment	3-5 days after payment	3-5 days after payment
Payment Way	T/T, Paypal, Western Union	T/T, Paypal, Western Union	T/T, Paypal, Western Union
