The Automatic Full Computer Cable Stripping and Cutting Machine (Model WPM-09D) is a highly efficient and precise numerical control equipment designed for the automated processing of a variety of cables within the cross-section range of 0.1 to 8.0mm² (AWG8# to AWG32#). Incorporating advanced automation technology from Japan and Taiwan, this cable stripping machine is widely applied in the electronics industry, as well as in the production of electrical appliances, motors, lamps, toys, and other products requiring accurate wire preparation. This cable stripping machine is optimally suited for stripping insulation from materials such as PVC, Teflon, silica gel, and glass fiber.
Key Features and Benefits:
Detailed Functionality:
The Automatic Full Computer Cable Stripping Machine (Model WPM-09D) automates the complete cable preparation process. First, the cable is automatically fed into the machine and cut to the programmed length, up to 9999mm. Next, the insulation is precisely stripped from both ends according to the set stripping lengths, up to 35mm on the head and 15mm on the tail. This cable stripping machine also offers the capability to perform middle stripping at up to 11 different sections along the cable. The user-friendly English LCD display allows for easy programming and adjustment of all parameters. The efficient 4-drive system ensures stable and reliable operation for cable stripping and cutting.

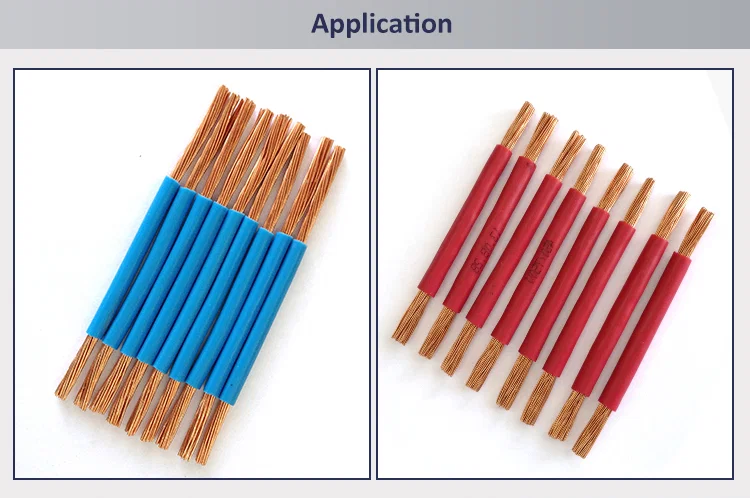

Apply for:
Widely used in the electronics industry, the city has (likely referring to urban infrastructure or related electrical applications), electrical appliances, motors, lamps, toys, and other various products of wire processing. This cable stripping machine is a versatile tool for these applications.
Specification (Model WPM-09D):
Why Choose the Automatic Cable Stripping and Cutting Machine (Model WPM-09D)?
The WPM-09D cable stripping machine offers a versatile and efficient solution for automating the stripping and cutting of a wide range of cables. Its good speed, precision, comprehensive functionality, and user-friendly interface make it an excellent asset for manufacturers looking to streamline their cable preparation processes and achieve consistent, high-quality results.
Contact Us Today for a Quote!
Optimize your cable processing with this advanced automatic cable stripping machine. Contact us today to learn more and request a personalized quote. Please specify your preferred voltage (220V or 110V) when inquiring.
Keywords: Cable stripping machine, Wire Cutting Machine, Automatic Stripping Machine, Wire Stripper, Automatic Wire Cutter, High-Speed Wire Stripper, English LCD Wire Stripper, WPM-09D
|
Model |
WPM-09D |
WPM-09JE |
WPM-09JE |
|
Wire material |
PVC, teflon, fiberglass wire... |
PVC, teflon, fiberglass wire... |
PVC, teflon, fiberglass wire... |
|
Conductor cross-section |
0.1 - 8.0 mm² (32 - 8 AWG) |
0.1 - 8.0 mm²(32 - 8 AWG) |
0.1 - 10 mm²(32 - 7 AWG) |
|
Cutting length |
1 - 99,999 mm |
1 - 99,999 mm |
1 - 100,000 mm |
|
Cutting length tolerance |
0.002 * L |
0.002 * L |
0.002 * L |
|
Stripping length |
Side I: 0 - 35 mm Side II: 0 - 15 mm |
Side I: 0-50mm Side II: 0 - 50 mm |
Side I: 0 - 80 mm Side II: 0 - 80 mm |
|
Maximum guide tube diameter |
8 - 10 mm |
8 - 10 mm |
13 mm |
|
Productivity |
33 - 83pcs/min |
33-83pcs/min |
50-133pcs/min |
|
Noise level |
< 70 dB(A) |
< 70 dB(A) |
< 70 dB(A) |
|
Power supply |
110, 220 V (50 - 60 Hz) |
110, 220 V (50 - 60 Hz) |
110, 220 V (50 - 60 Hz) |
|
Power |
300 W |
300 W |
500 W |
|
Gross Weight |
34 kg |
34 kg |
34 kg |
|
Carton dimension |
537 * 507 * 400 mm |
537 * 507 * 400 mm |
537 * 507 * 400 mm |
